Embedding Cocoa Frameworks

Posted September 2007

Cocoa has a really neat feature that allows you to embed a framework inside your application bundle. Why would you want to do this? Not all frameworks are available everywhere. Instead of forcing your users to install lots of frameworks before they can start using your app, simply bundle them inside your app.

You cannot simply embed any framework; it has to be built specifically for embedding. A framework is a dynamically linked library. These have the path they are installed at hard coded inside them. (For security reasons, or some such; it's damn inconvenient at any rate.) Normally these paths are of the form /Library/Frameworks/. For an embedded framework, however, we have to use something else. The special path @executable_path refers to the path of the executable inside your application bundle. You can then refer to the Frameworks directory in your application bundle by setting the installation path of your framework to be @executable_path/../Frameworks.

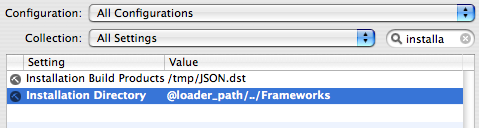

Install Path

If you want to embed a framework inside another framework you'll need the even more special @loader_path, which is only available in OS X 10.4 Tiger and later. I find this useful, so that's what I used in the example above. Now add the framework to your application the way you'd add any other existing framework:

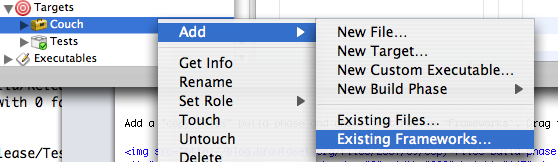

Add Existing Framework

Add a "copy files" build phase and chose destination Frameworks. Drag the embedded framework you added into it.

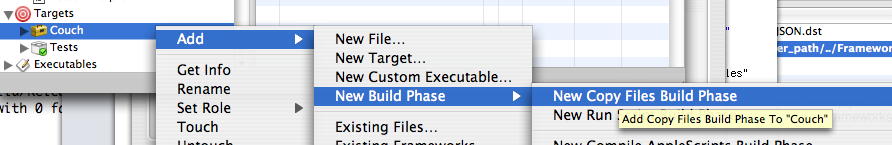

Copy Files Build Phase

Voilá!

Jonathan "Wolf" Rentzsch has a screen cast that shows you in more detail how to embed frameworks. It is for a rather older version of Xcode than what is available now, but it is still good. The Cocoa developer guide to embedding a framework is also good.
